EGR Delete Kit for Land Rover Freelander BMW with 2.0 2.5 3.0 D M47 M57 engines

Over time EGR system in your vehicle can become blocked with tar and sediment which affects economy and performance. The TAFMET EGR Kit is a direct and simple replacement which solves those problems.

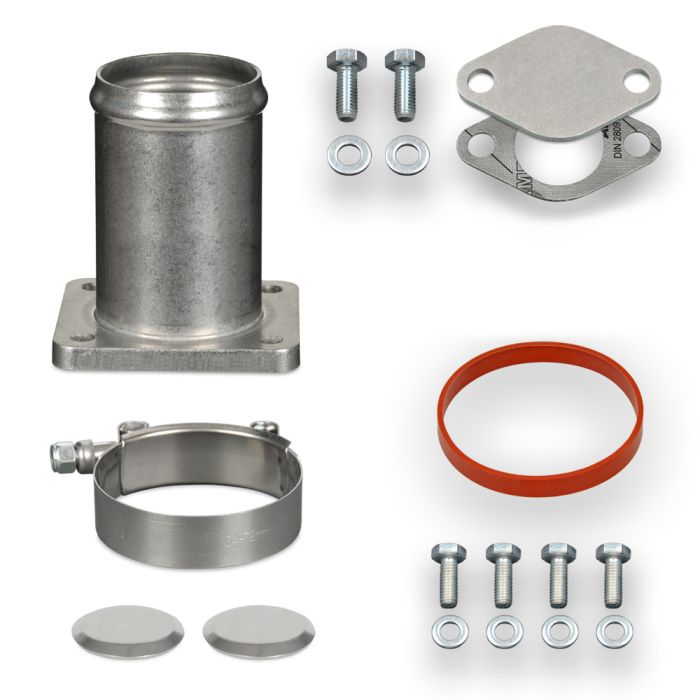

Kit Content and Specifications:

• • • 1 x EGR Replacement Pipe (54 mm outer diameter, 90 mm in Length, stainless steel - lifetime warranty)
    • 1 x Blanking Plate (stainless steel - lifetime warranty)
    • 1 x Blanking Plate Gasket

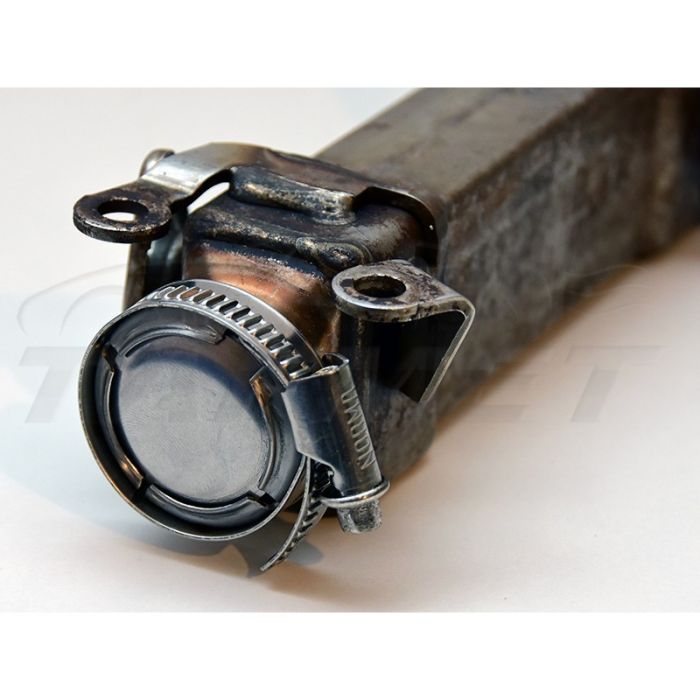

    • 2 x Exhaust cooler blanking plate
    • 1 x Flange Gasket
    • 1 x Hose Clip (from reputable company FMIC)
    • 2 x Blanking Plate Screw with Washer
    • 4 x Flange Screw with Washer

Please Note!

Generally until 2002-2004 no ECU warning light will appear. Later models with pneumatic and electronic EGR valves, fitment of this part may result in the ECU warning light appearing. We recommend a re-map of the ECU so that the EGR function can be removed completely, this can be carried out by tuner.

For use outside public roads and in motor sport.

Application:

3' E46 1997 - 2006

• • • 318d Limousine, engine M47
    • 318d Touring, engine M47
    • 318d Limousine, engine M47N
    • 318d Touring, engine M47N
    • 318td Compact, engine M47N
    • 320Cd Cabrio, engine M47N
    • 320Cd Coupé, engine M47N
    • 320d Limousine, engine M47N
    • 320d Touring, engine M47N
    • 320td Compact, engine M47N
    • 330Cd Coupé, engine M57N
    • 330d Limousine (until 08.2000), engine M57
    • 330d Touring, engine M57
    • 330d Limousine, engine M57N
    • 330d Touring, engine M57N
    • 330xd Limousine, engine M57
    • 330xd Touring, engine M57
    • 330xd Limousine, engine M57N
    • 330xd Touring, engine M57N

5' E60 2003 - 2005

• • • 530d Limousine, engine M57N

5' E61 2003 - 2005

• • • 530d Touring, engine M57N

7' E65 2001 - 2005

• • • 730d Limousine, engine M57N

Land Rover Freelander

• • • 2.0 Td4 4x4, 2000.11 - 2006.10, engine: 204D3
    • 2.0 Td4 4x4, 2001.11 - 2006.10, engine: M 47

If in doubt please check your engine code. Alternatively if your engine or vehicle model is not listed please contact us before placing an order.

OEM numbers of EGR valves:

• • • Pierburg: 7.28264.06.0
    • BMW: 11717785452, 11717804378, 11714701242
    • Land Rover: LR005791, WAV000040

OEM numbers of exhaust coolers:

• • 11717789790
  • 11714706801
