EGR Valve Delete Kit for BMW M47N M47N2 2.0 Diesel engines

Application:

3' E46, 08.2002 - 08.2006

• • • 318d, Sedan, engine M47N
    • 318d, Touring, engine M47N
    • 318d, Compact, engine M47N

X3 E83, 05.2003 - 07.2006

• • • 2.0d, engine M47N2

X3 E83 LCI, 03.2006 - 08.2010

• • • 2.0d, engine M47N2

If in doubt please check your engine code. Alternatively if your engine or vehicle model is not listed please contact us before placing an order.

OEM numbers of the EGR valve:

• • • Pierburg: 7.28264.06.0
    • BMW: 11717785452, 11717804378, 11714701242

OEM numbers of the EGR exhaust cooler:

• • • 11717794245
    • 11717790065

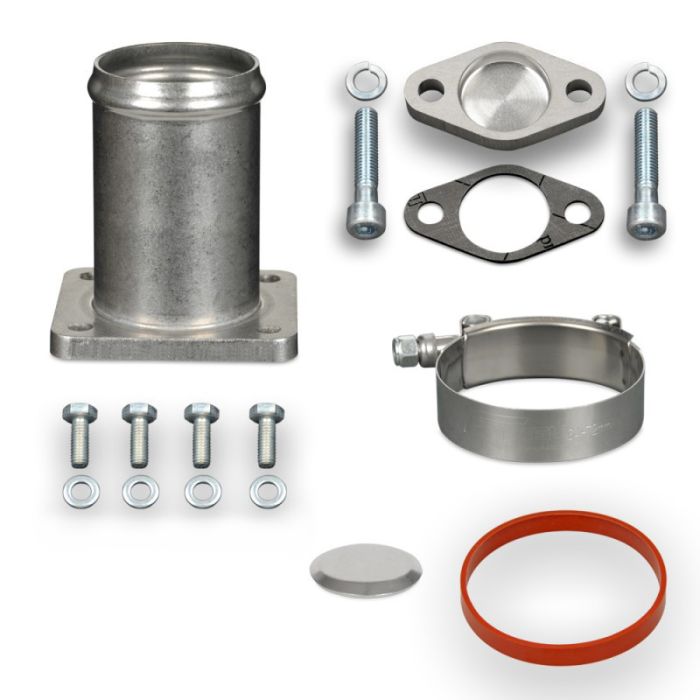

Kit Content and Specifications:

• • • 1 x EGR Replacement Pipe (54 mm outer diameter, 90 mm in Length, stainless steel - lifetime warranty)
    • 1 x Blanking Plate (stainless steel - lifetime warranty)
    • 1 x Blanking Plate Gasket
    • 1 x Flange Gasket
    • 1 x Exhaust cooler blanking plate
    • 1 x Hose Clip
    • 2 x Blanking Plate Screw with Washer
    • 4 x Flange Screw with Washer
    • 1 x Keyring

Please Note!

Generally until 2002-2004 no ECU warning light will appear. Later models with pneumatic and electronic EGR valves, fitment of this part may result in the ECU warning light appearing. We recommend a re-map of the ECU so that the EGR function can be removed completely, this can be carried out by tuner.

For use outside public roads and in engine sport
